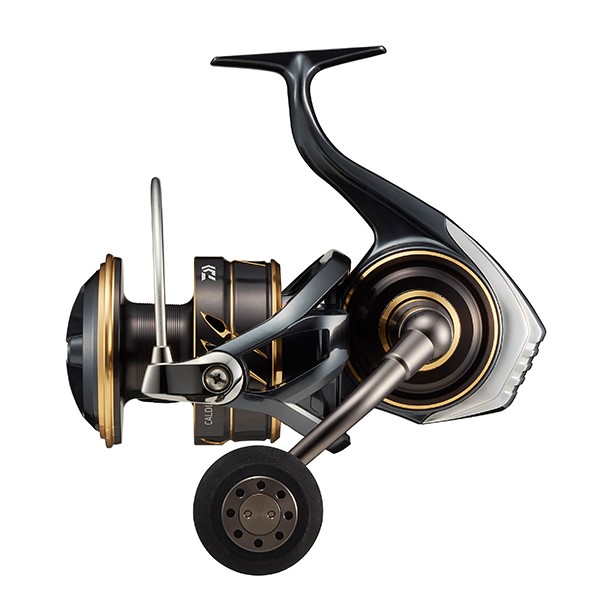

Daiwa 22 Caldia SW fishing reels

22 Caldia SW

~ 280 - 395 $

Brand

Daiwa

Model year

2022

Full aluminum Monocoque body
Magshield between body and rotor
Carbon ATD drag system ( 3 washers: 4000-14000 models, 5 washers: 18000 model)
Tough Digi Gear
Air rotor
LC-ABS (Longcast-ABS) aluminum spool
Air bail
Rotor brake
Manual return (6000-18000 models)
Stopperless body
Perfect line stopper (4000-6000 models)
Power Small round EVA knob (4000-6000 models)
Power Large round EVA knob (8000-18000 models)

Daiwa reel technologies description

22 Caldia SW key features:

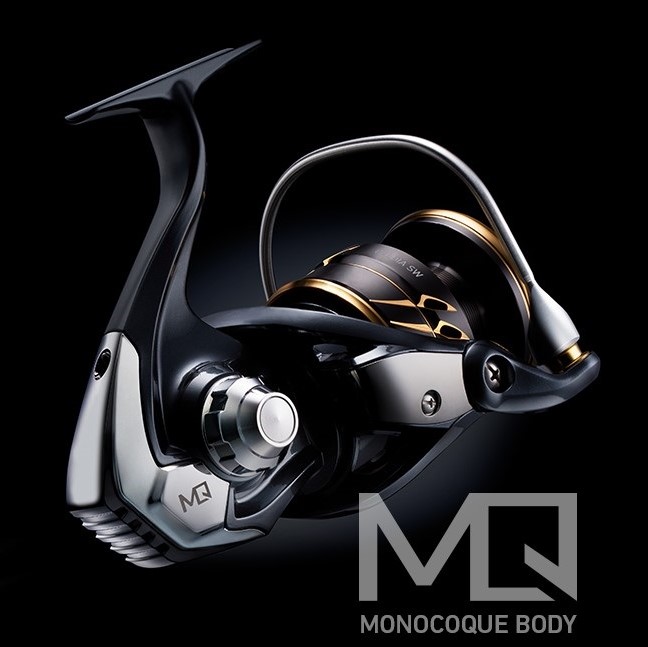

MONOCOQUE BODY

This design incorporates a one-piece frame and a one-piece threaded side plate. Because screws are not necessary to attach the side plate and hold the main gear, the interior space in the body is greater allowing for a larger more powerful gear held in place by the lighter, sturdier body rather than the traditional side plate.

MAGSEALED

DAIWA's unique waterproof structure creates a wall of magnetic oil in the gap between the body and rotor, blocking out seawater, dust, and other elements.

TOUGH DIGIGEAR

Gears are the real beating heart of a reel: the transfer of power and the performance of the recovery action depend on them. For this reason Daiwa has invested great energy in the design and development of new gears that are even more effective, efficient and long lasting: the Tough Digigear. Developed starting from the famous Daiwa Digigear, they equip all the best reels of the latest generation: increased in size and improved in materials, they guarantee superior mechanical performance, greater reliability and durability.

ATD TOUGH

The ATD Tough uses carbon washers to achieve high durability. It pursues smooth start and tracking, allowing you to concentrate on the fight without worrying about the drag setting.

LC-ABS (Long Cast ABS)

Compared to conventional spools, the LC-ABS Spool design has been shown to increase the average flight distance by approx. 5% due to its reduced weight and modified shape. LC-ABS Spool design grants anglers a premium casting experience.

Perfect Line Stopper

A new shape of line stopper that is compatible with thin lines such as PE and thick lines such as leaders. The horizontal shape saves vertical space and contributes to reducing the weight of the spool.

Stopperless body

The body structure has been simplified by removing the stopper. The decision to remove the stopper, which is a route for water and foreign objects to enter, not only reduces weight and improves waterproof performance, but also minimizes the risk of sudden trouble when fishing in harsh environments or with large fish.

Manual bail return

In order to completely prevent the bail from flipping back when casting and to improve durability, a manual return mechanism is used that prevents the bail from flipping back when the handle is turned.

Show all key features

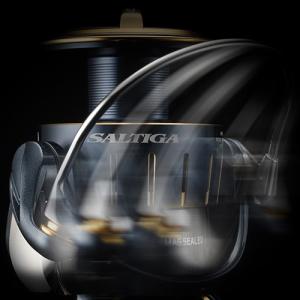

ROTOR BRAKE

This mechanism brakes the rotation of the rotor when the bail is opened, preventing the bail from accidentally flipping over due to the handle moving from the shock of casting.

AIR ROTOR

Air Rotor is a design triumph, where weight is reduced, rotary balance is even and stress distribution is even. The enormous strains, which affect the rotor via the line and the line roller are better distributed. This causes less pressure on the single parts of the rotor. The Air Rotor is 15% lighter than usual rotors of the same material - this reduces vibrations and enhances the rotational balance thanks to the near symmetrical shape and very low centre of gravity. Under the same strain, a conventional rotor can become much more distorted, due to concentrated pressure point. Air Rotor distributes the stress.

AIR BAIL

DAIWA's innovative bail design features a hollow, tubular stainless steel bail for maximum rigidity and strength with minimum weight. Due to the smooth, protrusion-free design of the Air Bail, even loose line, common after a cast slides easily down the bail onto the line roller as the reel is turned, without snagging or hanging up.

22 Caldia SW lineup:

Daiwa 22 Caldia SW 4000-CXH

~ 280 $

View

Compare

Daiwa 22 Caldia SW 4000D-CXH

~ 280 $

View

Compare

Daiwa 22 Caldia SW 5000D-CXH

~ 280 $

View

Compare

Daiwa 23 Caldia SW 5000-CXH

~ 280 $

View

Compare

Daiwa 22 Caldia SW 6000S-H

~ 305 $

View

Compare

Daiwa 22 Caldia SW 6000D-H

~ 305 $

View

Compare

Daiwa 22 Caldia SW 8000-H

~ 340 $

View

Compare

Daiwa 23 Caldia SW 8000-P

~ 340 $

View

Compare

Daiwa 22 Caldia SW 10000-H

~ 340 $

View

Compare

Daiwa 23 Caldia SW 10000-P

~ 340 $

View

Compare

Daiwa 22 Caldia SW 14000-H

~ 340 $

View

Compare

Daiwa 22 Caldia SW 18000

~ 395 $

View

Compare

22 Caldia SW specification:

Model	Size	Bearings	Gear ratio	Weight	Drag power	Line per cranck	Line capacity	Handle position	Approx. Price
22 Caldia SW 4000-CXH	4000	6+1	6.2:1	290.00 GM / 10.23 OZ	12.00 KG / 26.40 LB	99.00 CM / 39.00 IN	PE-M: 1.2-310, 1.5-200	Left hand, Right hand	~ 280 $
22 Caldia SW 4000D-CXH	4000	6+1	6.2:1	290.00 GM / 10.23 OZ	12.00 KG / 26.40 LB	99.00 CM / 39.00 IN	PE-M: 1.5-430, 2-300	Left hand, Right hand	~ 280 $
22 Caldia SW 5000D-CXH	5000	6+1	6.2:1	295.00 GM / 10.41 OZ	12.00 KG / 26.40 LB	105.00 CM / 41.30 IN	PE-M: 2-350, 2.5-300	Left hand, Right hand	~ 280 $
23 Caldia SW 5000-CXH	5000	6+1	6.2:1	295.00 GM / 10.41 OZ	12.00 KG / 26.40 LB	105.00 CM / 41.30 IN	PE-M: 1.5-430, 2-300	Left hand, Right hand	~ 280 $
22 Caldia SW 6000S-H	6000	6+1	5.7:1	430.00 GM / 15.17 OZ	12.00 KG / 26.40 LB	101.00 CM / 39.80 IN	PE-M: 2-300, 2.5-260	Left hand, Right hand	~ 305 $
22 Caldia SW 6000D-H	6000	6+1	5.7:1	425.00 GM / 15.00 OZ	12.00 KG / 26.40 LB	101.00 CM / 39.80 IN	PE-M: 3-300, 4-220	Left hand, Right hand	~ 305 $
22 Caldia SW 8000-H	8000	6+1	5.7:1	630.00 GM / 22.22 OZ	15.00 KG / 33.00 LB	110.00 CM / 43.30 IN	PE-M: 3-400, 4-300	Left hand, Right hand	~ 340 $
23 Caldia SW 8000-P	8000	6+1	4.9:1	635.00 GM / 22.40 OZ	15.00 KG / 33.00 LB	94.00 CM / 37.00 IN	PE-M: 3-400, 4-300	Left hand, Right hand	~ 340 $
22 Caldia SW 10000-H	10000	6+1	5.7:1	645.00 GM / 22.75 OZ	15.00 KG / 33.00 LB	121.00 CM / 47.60 IN	PE-M: 4-400, 5-300	Left hand, Right hand	~ 340 $
23 Caldia SW 10000-P	10000	6+1	4.9:1	650.00 GM / 22.93 OZ	15.00 KG / 33.00 LB	103.00 CM / 40.60 IN	PE-M: 4-400, 5-300	Left hand, Right hand	~ 340 $
22 Caldia SW 14000-H	14000	6+1	5.7:1	640.00 GM / 22.57 OZ	15.00 KG / 33.00 LB	121.00 CM / 48.00 IN	PE-M: 5-400, 6-300	Left hand, Right hand	~ 340 $
22 Caldia SW 18000	18000	6+1	5.3:1	845.00 GM / 29.80 OZ	20.00 KG / 44.00 LB	125.00 CM / 49.20 IN	PE-M: 6-400, 8-300	Left hand, Right hand	~ 395 $

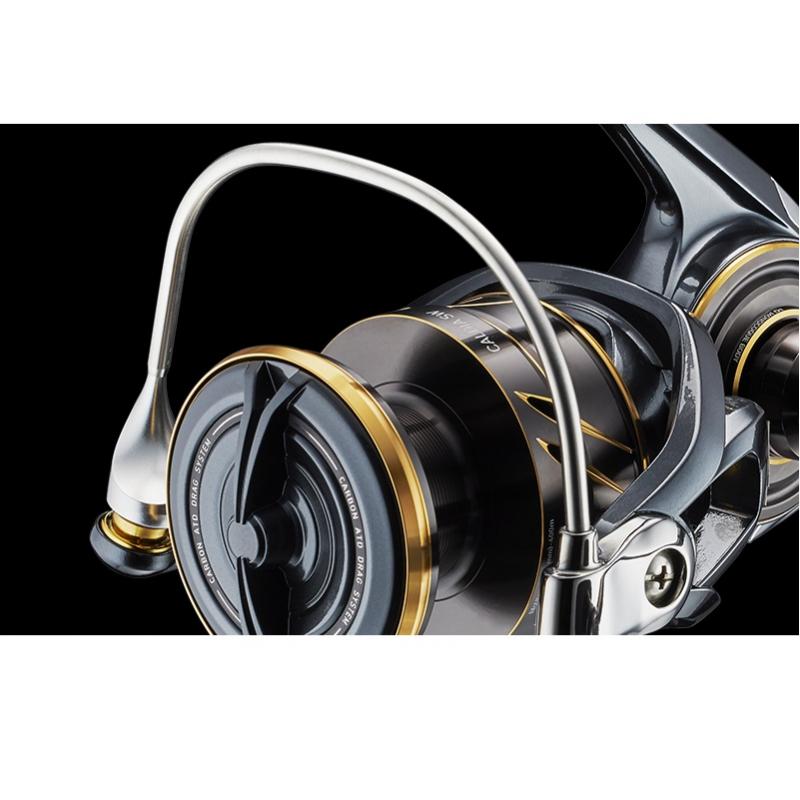

22 Caldia SW left side

22 Caldia SW right side

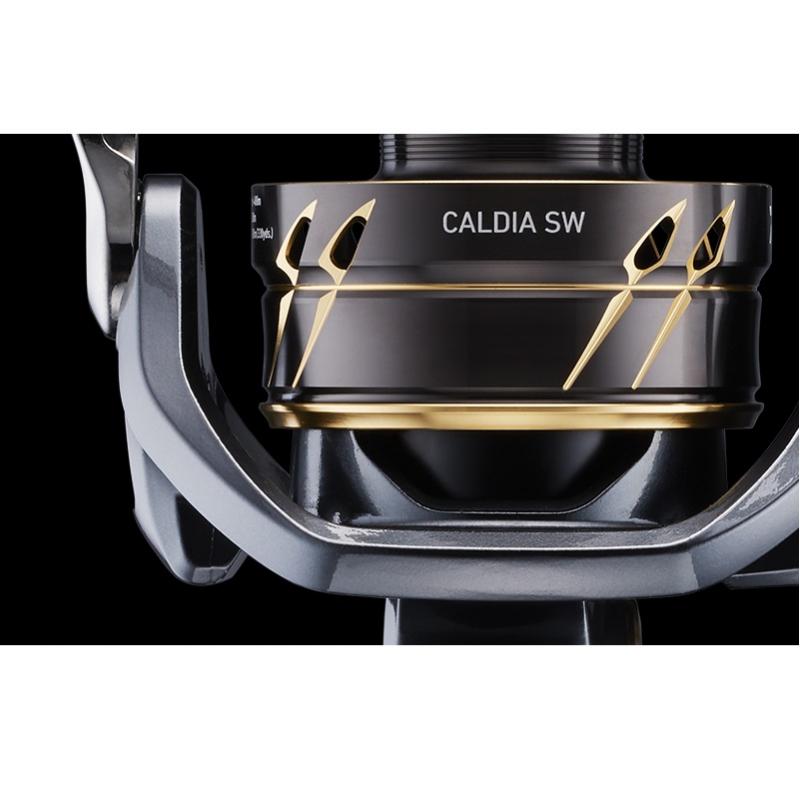

22 Caldia SW rotor

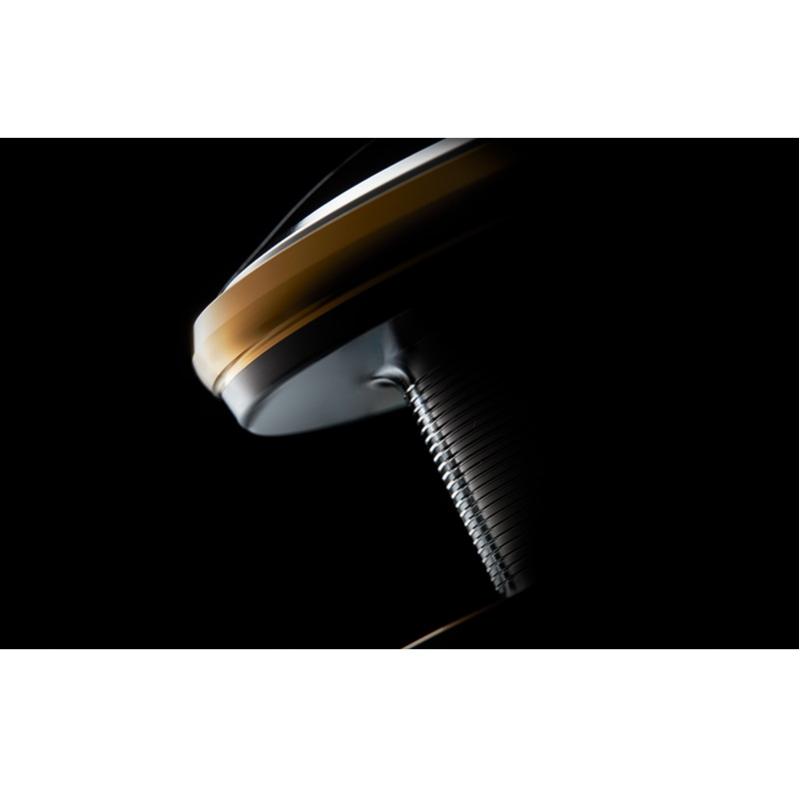

22 Caldia SW side

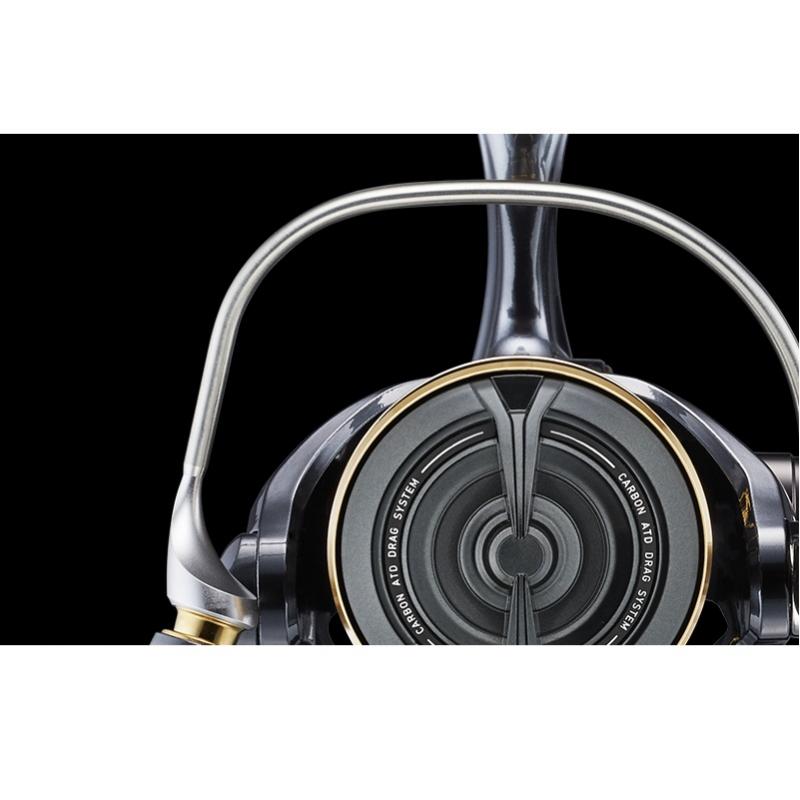

22 Caldia SW drag

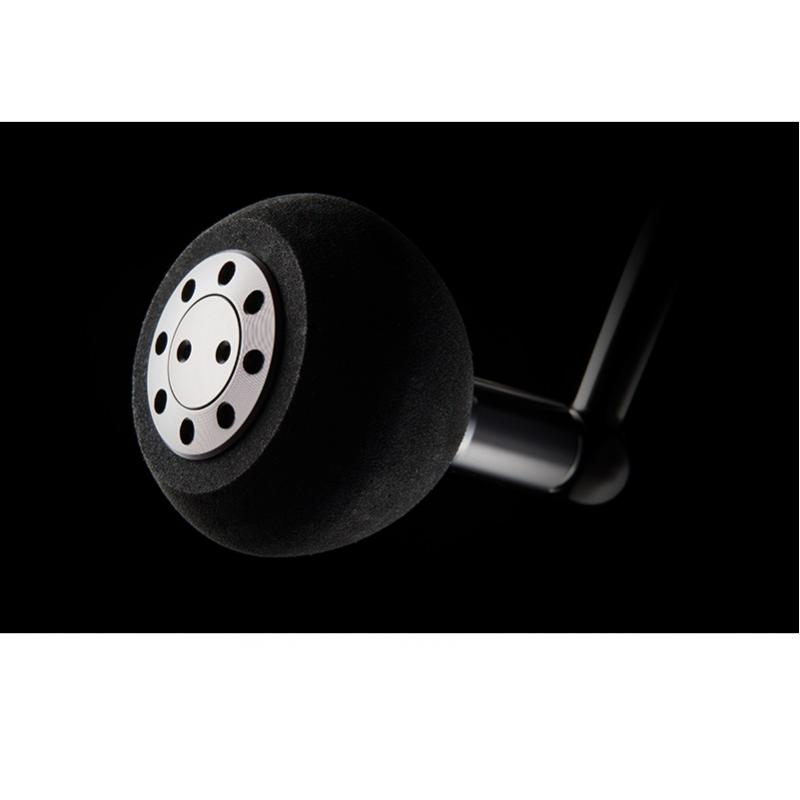

22 Caldia SW knob

22 Caldia SW spool

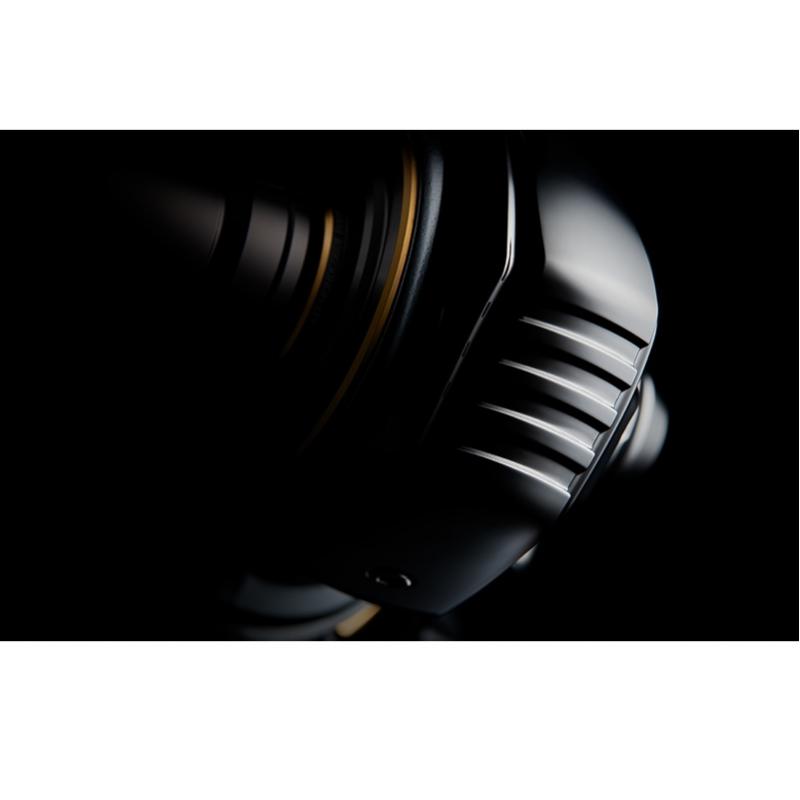

22 Caldia SW back
