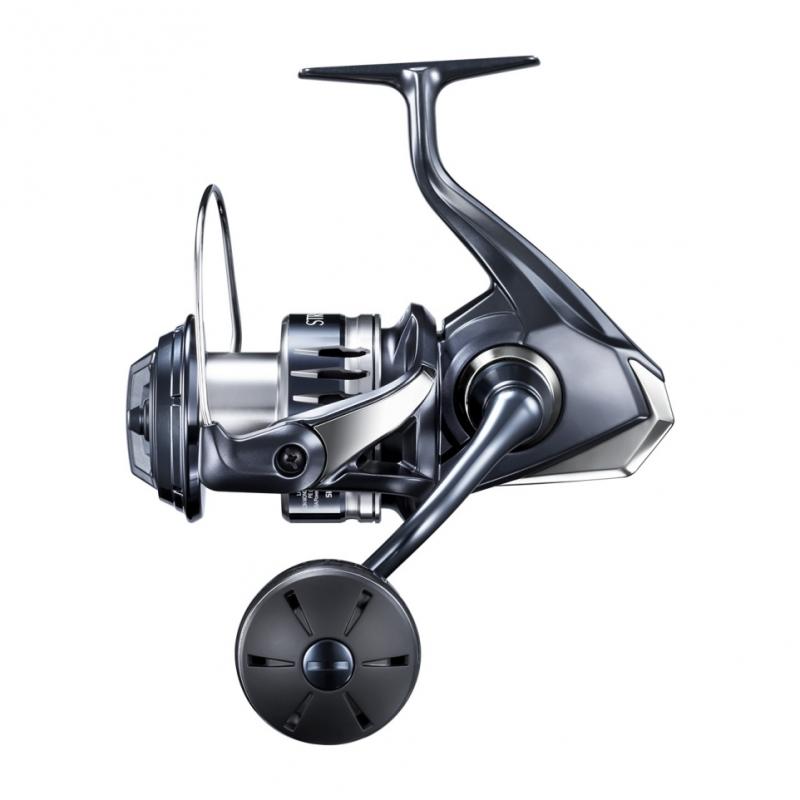

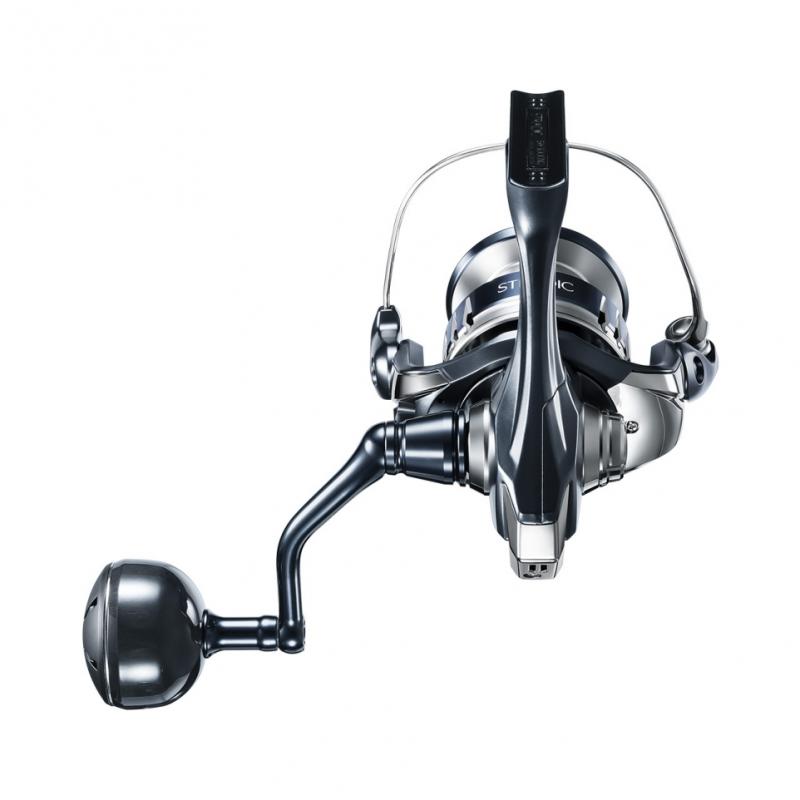

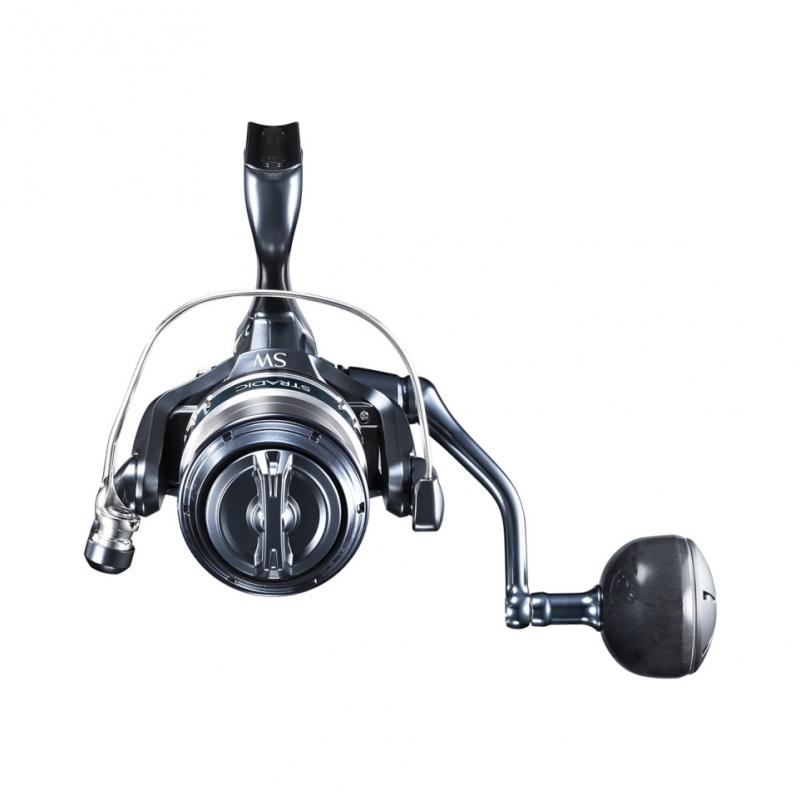

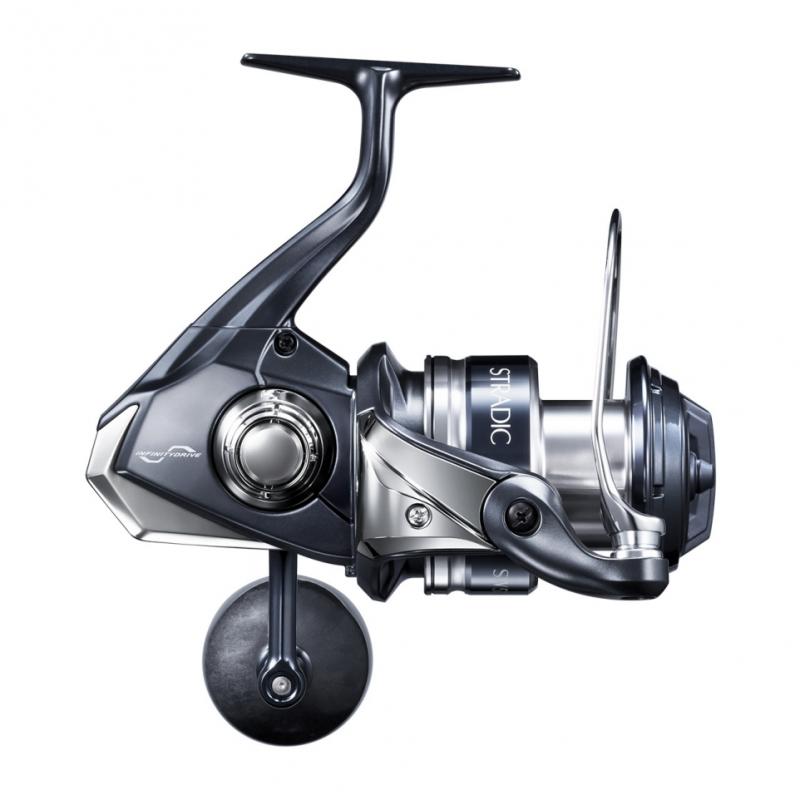

Shimano 20 Stradic SW fishing reels

20 Stradic SW

~ 290 - 370 $

Brand

Shimano

Model year

2020

BODY MATERIAL: ALU
SPOOL MATERIAL: ALU
WATERPROOF DRAG: YES
HANDLE: SCREW IN SINGLE ALU
OSCILLATION: AERO WRAP

HAGANE GEAR
HAGANE BODY
X SHIP
X-SHIELD (Excluding 4000HG, 4000XG)
IPX8 WATERPROOF BODY
X-PROTECT (Excluding 4000HG and 4000XG)
S ARB
AR-C SPOOL
ONE PIECE BAIL
CROSS CARBON DRAG
INFINITY DRIVE (Excluding 4000HG, 4000XG)
SILENT DRIVE (4000HG, 4000XG only)
X-TOUGH DRAG (14000XG only)
G FREE BODY (4000HG, 4000XG only)
MICROMODULE II (4000HG, 4000XG only)
LONG STROKE SPOOL (4000HG, 4000XG only)

Shimano reel technologies dascription

20 Stradic SW key features:

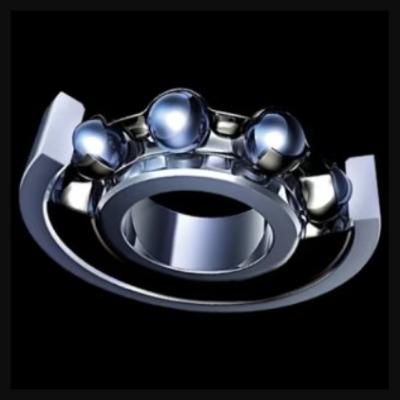

S A-RB

Shielded Stainless Steel Anti-Rust Bearings. These bearings have undergone a special heat treatment resulting in high metal strength. Shielded A-RB bearings use either a rubber shield or stainless steel shield (depending on bearing size) for the ultimate in corrosion resistance and contaminant protection against sand, salt or dust.

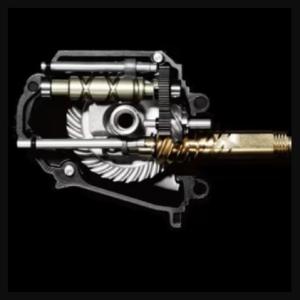

X-SHIP

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

HAGANE

Hagane is a Shimano reel design concept created to withstand continual use and extreme abuse. Hagane is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering.

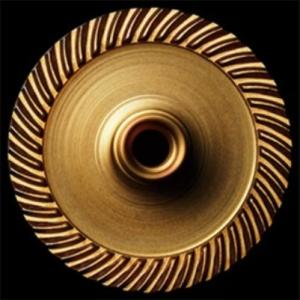

HAGANE GEAR

With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology.

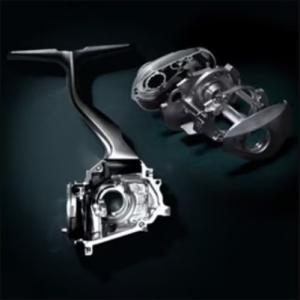

HAGANE BODY

The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

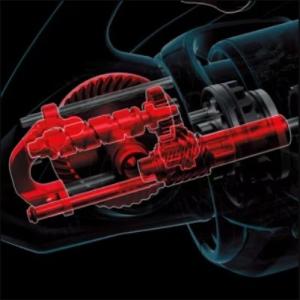

SILENT DRIVE

SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.

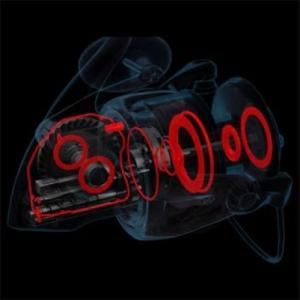

X-SHIELD

By providing dependable sealing structures and gaskets at 12 critical locations throughout the reel body, Shimano is able to create a water-resistant structure that is highly reliable and durable while ensuring that it can hold up when used in extreme saltwater conditions.

X-PROTECT (SW)

Large reels for saltwater, a contact-type water-resistant structure is used for large spinning reels that require higher water-resistant performance. By physically cutting off the entry path of seawater with a low-sliding seal member, high water-resistant performance is achieved while suppressing rotational resistance. The stopper bearing and line roller parts are adopted, and the stopper bearing part in particular achieves a water-resistant rating equivalent to IPX8.

Show all key features

AR-C SPOOL

The spool has a special spool ring shape. This creates a rectifying effect on the line and realizes both suppression of line trouble and long casting performance.

ONE-PIECE BAIL

One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.

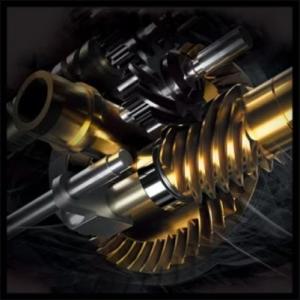

MICROMODULE II

Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.

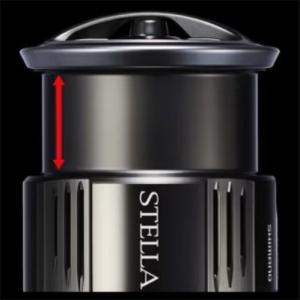

LONG STROKE SPOOL

The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.

X-PROTECT

For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.

G-FREE BODY

G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.

CROSS CARBON DRAG

The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

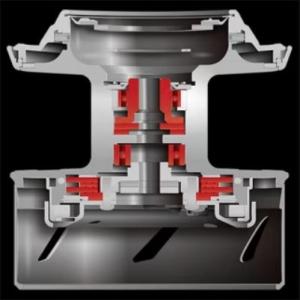

X TOUGH DRAG

Each washer is made of only metal and carbon to support the spool from both the top and bottom. Smooth and stable drag performance has been refined by improving heat resistance and durability.

20 Stradic SW lineup:

Shimano 20 Stradic SW 4000HG

~ 290 $

View

Compare

Shimano 20 Stradic SW 4000XG

~ 290 $

View

Compare

Shimano 20 Stradic SW 5000PG

~ 295 $

View

Compare

Shimano 20 Stradic SW 5000XG

~ 295 $

View

Compare

Shimano 20 Stradic SW 6000PG

~ 295 $

View

Compare

Shimano 20 Stradic SW 6000HG

~ 295 $

View

Compare

Shimano 20 Stradic SW 6000XG

~ 295 $

View

Compare

Shimano 20 Stradic SW 8000PG

~ 345 $

View

Compare

Shimano 20 Stradic SW 8000HG

~ 345 $

View

Compare

Shimano 20 Stradic SW 10000HG

~ 345 $

View

Compare

Shimano 20 Stradic SW 14000XG

~ 370 $

View

Compare

20 Stradic SW specification:

Model	Size	Bearings	Gear ratio	Weight	Drag power	Line per cranck	Line capacity	Handle position	Approx. Price
20 Stradic SW 4000HG	4000	6+1	5.8:1	300.00 GM / 10.60 OZ	11.00 KG / 24.00 LB	95.00 CM / 37.00 IN	Nylon (#-M): 3.5-170, 4-150, 5-125 \| Nylon (MM-M): 0.30-180, 0.35-130 \| PE-M: 1-490, 1.5-320, 2-240	Left hand, Right hand	~ 290 $
20 Stradic SW 4000XG	4000	6+1	6.2:1	300.00 GM / 10.60 OZ	11.00 KG / 24.00 LB	101.00 CM / 40.00 IN	Nylon (#-M): 3.5-170, 4-150, 5-125 \| Nylon (MM-M): 0.30-180, 0.35-130 \| PE-M: 1-490, 1.5-320, 2-240	Left hand, Right hand	~ 290 $
20 Stradic SW 5000PG	5000	6+1	4.6:1	430.00 GM / 15.20 OZ	12.00 KG / 26.00 LB	78.00 CM / 31.00 IN	Nylon (#-M): 4-200, 5-150, 6-130 \| Nylon (MM-M): 0.33-200, 0.37-150, 0.405-130 \| PE-M: 2-350, 3-240, 4-170	Left hand, Right hand	~ 295 $
20 Stradic SW 5000XG	5000	6+1	6.2:1	430.00 GM / 15.20 OZ	12.00 KG / 26.00 LB	105.00 CM / 41.00 IN	Nylon (#-M): 4-200, 5-150, 6-130 \| Nylon (MM-M): 0.33-200, 0.37-150, 0.405-130 \| PE-M: 2-350, 3-240, 4-170	Left hand, Right hand	~ 295 $
20 Stradic SW 6000PG	6000	6+1	4.6:1	440.00 GM / 15.50 OZ	12.00 KG / 26.00 LB	83.00 CM / 33.00 IN	Nylon (#-M): 4-240, 5-190, 6-160 \| Nylon (MM-M): 0.33-240, 0.37-190, 0.405-160 \| PE-M: 2-440, 3-300, 4-210	Left hand, Right hand	~ 295 $
20 Stradic SW 6000HG	6000	6+1	5.7:1	440.00 GM / 15.50 OZ	12.00 KG / 26.00 LB	103.00 CM / 41.00 IN	Nylon (#-M): 4-240, 5-190, 6-160 \| Nylon (MM-M): 0.33-240, 0.37-190, 0.405-160 \| PE-M: 2-440, 3-300, 4-210	Left hand, Right hand	~ 295 $
20 Stradic SW 6000XG	6000	6+1	6.2:1	440.00 GM / 15.50 OZ	12.00 KG / 26.00 LB	112.00 CM / 44.00 IN	Nylon (#-M): 4-240, 5-190, 6-160 \| Nylon (MM-M): 0.33-240, 0.37-190, 0.405-160 \| PE-M: 2-440, 3-300, 4-210	Left hand, Right hand	~ 295 $
20 Stradic SW 8000PG	8000	6+1	4.9:1	650.00 GM / 22.90 OZ	13.00 KG / 28.00 LB	94.00 CM / 37.00 IN	Nylon (#-M): 5-275, 6-230, 8-160 \| Nylon (MM-M): 0.37-275, 0.405-230, 0.47-160 \| PE-M: 3-410,4-300, 5-250	Left hand, Right hand	~ 345 $
20 Stradic SW 8000HG	8000	6+1	5.6:1	645.00 GM / 22.75 OZ	13.00 KG / 28.00 LB	107.00 CM / 42.00 IN	Nylon (#-M): 5-275, 6-230, 8-160 \| Nylon (MM-M): 0.37-275, 0.405-230, 0.47-160 \| PE-M: 3-410,4-300, 5-250	Left hand, Right hand	~ 345 $
20 Stradic SW 10000HG	10000	6+1	5.6:1	660.00 GM / 23.30 OZ	13.00 KG / 28.00 LB	117.00 CM / 46.00 IN	Nylon (#-M): 6-300, 8-210, 10-160 \| Nylon (MM-M): 0.405-300, 0.47-210, 0.52-160 \| PE-M: 4-400, 5-300, 6-250	Left hand, Right hand	~ 345 $
20 Stradic SW 14000XG	14000	6+1	6.2:1	700.00 GM / 24.70 OZ	15.00 KG / 33.00 LB	134.00 CM / 52.80 IN	Nylon (#-M): 10-195,12-155,14-140 \| Nylon (MM-M): 0.405-330,0.47-240,0.52-195 \| PE-M: 6-300, 8-200, 10-165	Left hand, Right hand	~ 370 $
