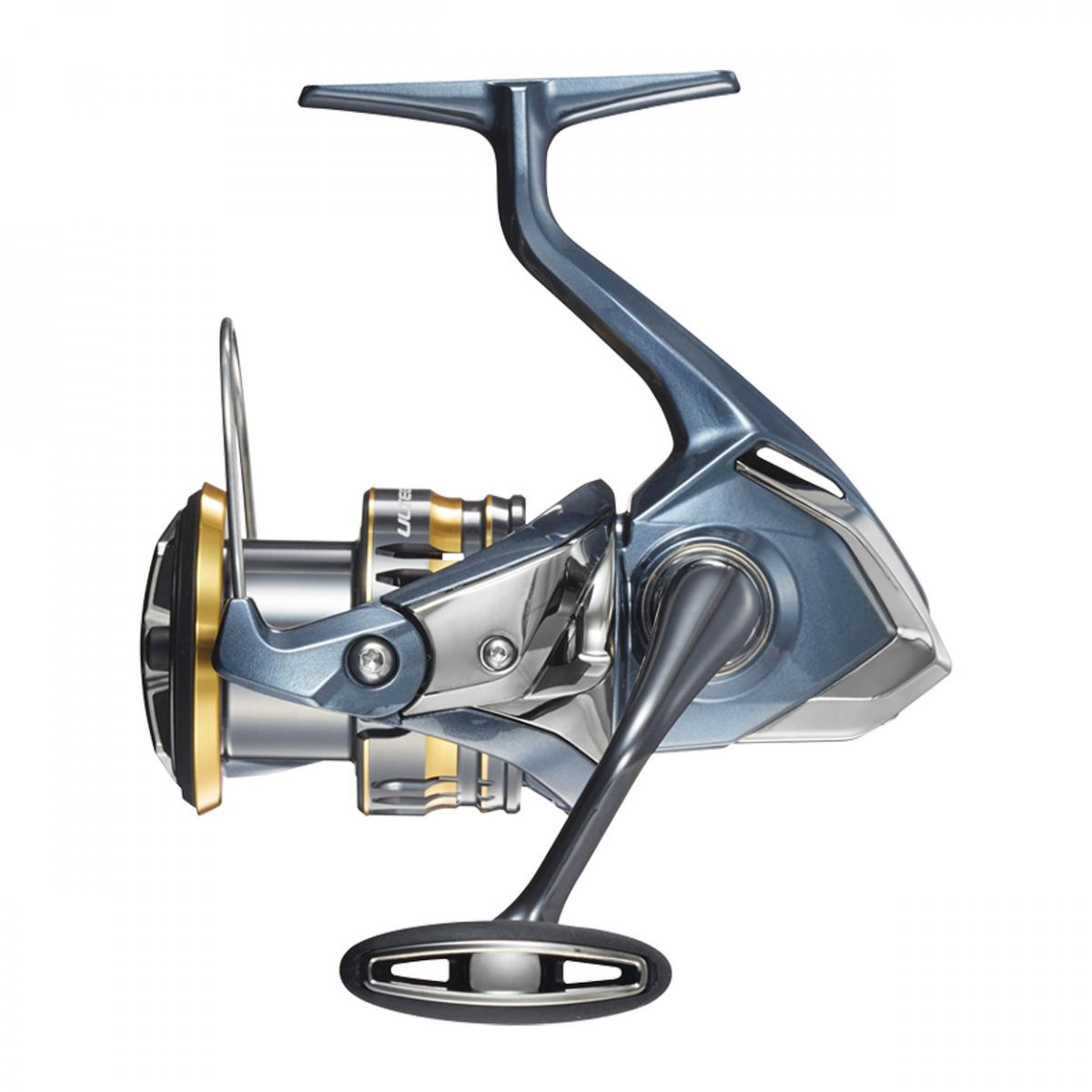

Ultegra FC

~ 150 - 160 $
Brand
Model year
2021
  • CI4+ body
  • XGT-7 rotor
  • Cold forged aluminum spool
  • Screw-in folding aluminum handle
  • HAGANE GEAR
  • MICROMODULE II
  • X SHIP
  • SILENT DRIVE
  • G FREE BODY
  • ARC SPOOL
  • LONG STROKE SPOOL
  • CI4+
  • S ARB
  • ONE PEICE BAIL
  • X PROTECT

2021 Shimano Ultegra FC spinning reel series provides you many latest technologies at a very good price. Awesome new design, light and tugh CI4+ composite side plate, Micromodule II and Silent Drive minimizes backlash, noise and improves sensitivity. Advanced water resistance due to X-Protect technology and line roller S-ARB ball bearing. One Piece Bail and Long Stroke Spool are also available in new Ultegra FC.

Ultegra FC series includes sizes 1000 to 5000 whith regular, high (HG) and extra high (XG) gear ratio. All 2000 and 3000 models have compact body (C). Shallow spool available only in 2000 size, other sizes have regular spool depth.

Avarage price of a new Ultegra FC is about 150-160 USD.


Ultegra FC key features:

S A-RB

S A-RB

Shielded Stainless Steel Anti-Rust Bearings. These bearings have undergone a special heat treatment resulting in high metal strength. Shielded A-RB bearings use either a rubber shield or stainless steel shield (depending on bearing size) for the ultimate in corrosion resistance and contaminant protection against sand, salt or dust.

X-SHIP

X-SHIP

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

HAGANE

HAGANE

Hagane is a Shimano reel design concept created to withstand continual use and extreme abuse. Hagane is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering.

HAGANE GEAR

HAGANE GEAR

With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology.

AR-C SPOOL

AR-C SPOOL

The spool has a special spool ring shape. This creates a rectifying effect on the line and realizes both suppression of line trouble and long casting performance.

ONE-PIECE BAIL

ONE-PIECE BAIL

One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.

MICROMODULE GEAR II

MICROMODULE II

Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.

LONG STROKE SPOOL

LONG STROKE SPOOL

The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.

CI4+

CI4+

CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.

X-PROTECT

X-PROTECT

For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.

G-FREE BODY

G-FREE BODY

G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.


Ultegra FC lineup:


Ultegra FC specification:

Model Size Bearings Gear ratio Weight Drag power Line per cranck Line capacity Handle position Approx. Price
21 Ultegra FC 1000 1000 5+1 5.1:1 180.00 GM / 6.30 OZ 3.00 KG / 7.00 LB 64.00 CM / 25.00 IN Mono (#TEST/YD): 2/270, 4/160, 6/110 | Braid (LB/YDS): 10/95, 15/75, 20/65 | Mono/Braid (MM/M): 0.14-145/0.16-105/0.18-80 Left hand, Right hand ~ 150 $
21 Ultegra FC C2000S 2000 5+1 5.1:1 185.00 GM / 6.50 OZ 3.00 KG / 7.00 LB 69.00 CM / 27.00 IN Mono/Braid (MM/M): 0.14-145/0.16-105/0.18-80 Left hand, Right hand ~ 150 $
21 Ultegra FC C2000HG 2000 5+1 6.1:1 185.00 GM / 6.50 OZ 3.00 KG / 7.00 LB 82.00 CM / 32.00 IN Mono/Braid (MM/M): 0.14-145/0.16-105/0.18-80 Left hand, Right hand ~ 150 $
21 Ultegra FC 2500 2500 5+1 5.3:1 225.00 GM / 7.90 OZ 9.00 KG / 20.00 LB 78.00 CM / 30.00 IN Mono/Braid (MM/M): 0.18-290/0.20-240/0.25-160 Left hand, Right hand ~ 150 $
21 Ultegra FC 2500HG 2500 5+1 6.0:1 225.00 GM / 7.90 OZ 9.00 KG / 20.00 LB 89.00 CM / 35.00 IN Mono (#TEST/YD): 6/200, 8/140, 10/120 | Braid (LB/YDS): 10/150, 15/145, 30/100 | Mono/Braid (MM/M): 0.18-290/0.20-240/0.25-160 Left hand, Right hand ~ 150 $
21 Ultegra FC 2500SHG 2500 5+1 6.0:1 220.00 GM / 7.80 OZ 4.00 KG / 9.00 LB 89.00 CM / 35.00 IN PE-M: 0.6-200,0.8-150,1-120 | Mono (MM-M):0.16-150,0.18-120,0.20-95 | Mono (LB-M): 5-110,6-95,8-70 Left hand, Right hand ~ 150 $
21 Ultegra FC C3000 3000 5+1 5.3:1 225.00 GM / 7.90 OZ 9.00 KG / 20.00 LB 78.00 CM / 30.00 IN Mono (#TEST/YD): 6/230, 8/170, 10/140 | Braid (LB/YDS): 10/200, 20/140, 40/105 | Mono/Braid (MM/M): 0.25-210/0.30-130/0.35-100 Left hand, Right hand ~ 150 $
21 Ultegra FC C3000HG 3000 5+1 6.0:1 225.00 GM / 7.90 OZ 9.00 KG / 20.00 LB 89.00 CM / 35.00 IN Mono (#TEST/YD): 6/230, 8/170, 10/140 | Braid (LB/YDS): 10/200, 20/140, 40/105 | Mono/Braid (MM/M): 0.25-210/0.30-130/0.35-100 Left hand, Right hand ~ 150 $
21 Ultegra FC C3000XG 3000 5+1 6.4:1 225.00 GM / 7.90 OZ 9.00 KG / 20.00 LB 94.00 CM / 37.00 IN Mono (#TEST/YD): 6/230, 8/170, 10/140 | Braid (LB/YDS): 10/200, 20/140, 40/105 | Mono/Braid (MM/M): 0.25-210/0.30-130/0.35-100 Left hand, Right hand ~ 150 $
21 Ultegra FC 4000 4000 5+1 5.3:1 270.00 GM / 9.50 OZ 11.00 KG / 24.00 LB 87.00 CM / 34.00 IN Mono (#TEST/YD): 10/200, 12/160 | Braid (LB/YDS): 15/230, 30/180, 50/120 | Mono/Braid (MM/M): 0.25-260/0.30-180/0.35-130 Left hand, Right hand ~ 150 $
21 Ultegra FC 4000XG 4000 5+1 6.2:1 270.00 GM / 9.50 OZ 11.00 KG / 24.00 LB 101.00 CM / 40.00 IN Mono (#TEST/YD): 10/200, 12/160 | Braid (LB/YDS): 15/230, 30/180, 50/120 | Mono/Braid (MM/M): 0.25-260/0.30-180/0.35-130 Left hand, Right hand ~ 150 $
21 Ultegra FC C5000XG 5000 5+1 6.2:1 285.00 GM / 10.10 OZ 11.00 KG / 24.00 LB 101.00 CM / 40.00 IN Mono (#TEST/YD): 12/195, 14/165 | Braid (LB/YDS): 20/260, 30/235, 40/185 | Mono/Braid (MM/M): 0.30-240/0.35-175/0.40-120 Left hand, Right hand ~ 160 $
